#1 Laptop DELL Latitude 5500 la-g901p brak dźwięku


by Tadzaiorek 6 May 2022, 15:02
la-g901p
srf9z i5-8365U

Witam, mam problem z 2 laptopami dell 5500. W obu laptopach nie wykrywa kodeka audio.
układ to alc3204
laptopy zostały zakupine przez 2 różnych klientów, oba laptopy wróciły na brak dźwięku, laptopy nie były podlane, nic się nie grzeje, system wstaje prawidłowo, wykrywa w menadżerze tylko dźwięk dla wyświetlacza.
Jakieś pomysły?

Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by Google Adsense [BOT] 6 May 2022, 15:02

#2 Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by matic 6 May 2022, 20:20
Hello!

Measure the voltages to ground on pins 1, 2, 3, 6, 16, 20, 21, 22, 27, 29, 32, 33, 39, 40 of audio codec chip.

#3 Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by ctro 6 May 2022, 23:49
Ostatnio mialem provlem w 5550 i okazał się softwareowy.
Sporo było kombinacji, ale najważniejsze:
1. Usunięcie sterowników od Windows (instaluje byle co)
2.. Dell command update i instalowanie ori sterowników. Upewniasz się, że są te starsze sterowniki, a nie nowe od Windows.
3. Instalujesz Dell optimizer i w zakladce audio włączasz opcję, aby zarządzała apka dźwiękiem.
4. Chyba jeszcze ze strony della instalowałem sterowniki osobno. W poniedziałek dopiero będę mógł potwierdzić ten punkt.

#4 Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by Tadzaiorek 10 May 2022, 17:13
matic wrote:Hello!

Measure the voltages to ground on pins 1, 2, 3, 6, 16, 20, 21, 22, 27, 29, 32, 33, 39, 40 of audio codec chip.

Measure on 3204

1. 3,35V
2. 5,18V
3. 0V
6. 0V
16. 4,41V
20. 0,02V
21. 3,35V
22. 0V
27. 3.35V
29. 1,24V
32 3,35V

#5 Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by matic 14 May 2022, 14:02
Tadzaiorek wrote:Measure on 3204
2. 5,18V
3. 0V
16. 4,41V
Are these measurements correct?
How about the measurements on pins 33, 39, 40?

#6 Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by Tadzaiorek 16 May 2022, 10:11

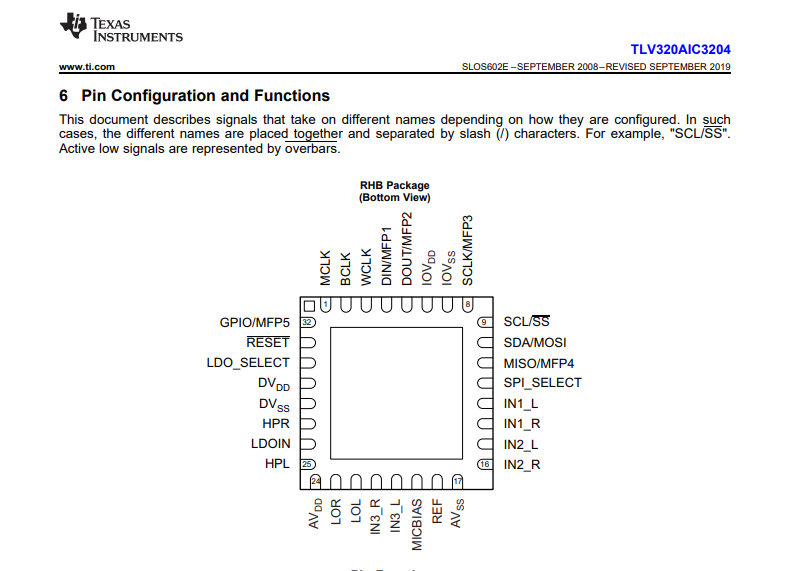

tak pomiary są prawidłowe. ale układ ma tylko 32 nogi


#7 Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by matic 16 May 2022, 15:29
Tadzaiorek wrote:układ to alc3204
Are you sure this chip has only 32-pin?

#8 Re: Laptop DELL Latitude 5500 la-g901p brak dźwięku


by Tadzaiorek 18 May 2022, 12:01
yes
