• schematic debug borad svod for ite

Forum rules:Click here to view the forum rules

  1. Topic title should contain the brief description of problem.
  2. Topic message should contain the extended description of problem and, the question.
  3. It is not allowed to post the attachments with complete documentations or BIOS files nor linking to any 3rd party websites hosting such files. It is only allowed to post the small portion of the documentation (up to one page per post).
  4. You can only describe one problem per topic. For each another problem you should open a new topic.
  5. It is strictly forbidden to ask for any kind of documentation or BIOS file. For such requests please use the DOCUMENTATION & BIOS/EFI REQUEST subforum.
This topic is marked as ARCHIVAL. Please only reply if your message contains the solution (Terms and Conditions p. 12.1).

#1 schematic debug borad svod for ite


by hghamkhar 21 September 2017, 10:00
hello
I'm buy a svod programmer ver 1.0 and also buy a socket ZIF LQFP-128 other.

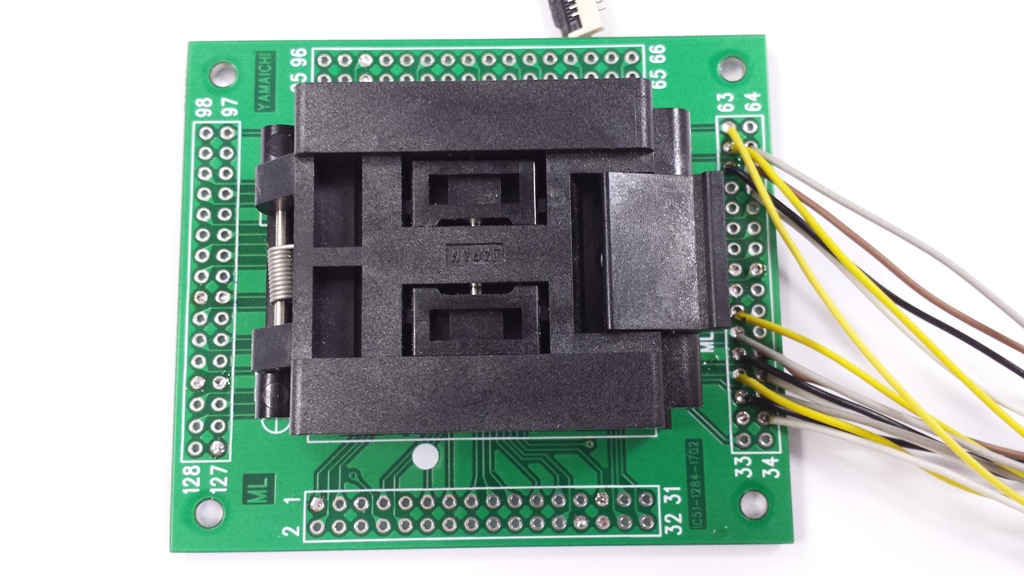

this is a image my socket zif LQFP-128.


how to connect svod to socket LQFP-128.
Somebody has a schematic of this debug board LQFP-128


Can you help me to make this board for ZIF LQFP-128.
thank you
