Asus x543ma-gq1012 motherboard:X450MAR REV:3.1 No picture

hi to all.
The laptop is damaged by water.
According to this post,https://www.elvikom.pl/identifying-the-resistance-value-x543ma-gq1012-motherboard-x450mar-rev-3-1-t69626.html?#

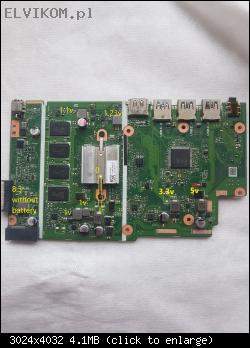

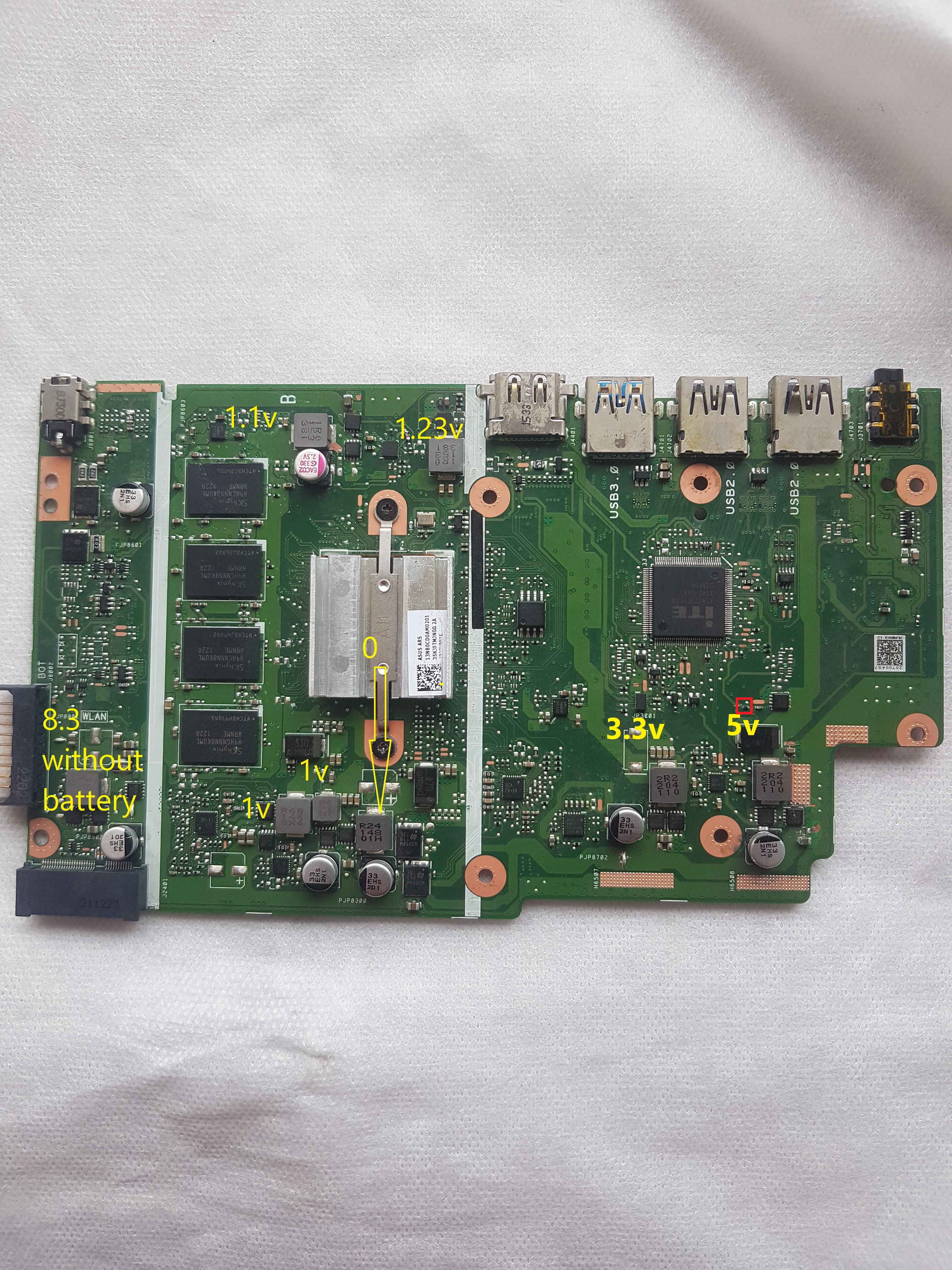

after replacing the resistor, the voltages of the device are established, except for the coil that is indicated in the photo.
No part gets hot and the device turns on as soon as the adapter is connected and does not turn off with the power switch.
3.3 v is established on pin 1 of the keyboard socket and the device does not turn off when the power button is pressed. There is no schematic of the motherboard
please advise me.tnx

Hello!

Start with replacing all corroded components regardless of whether if them seems functional or not.

tnx matic

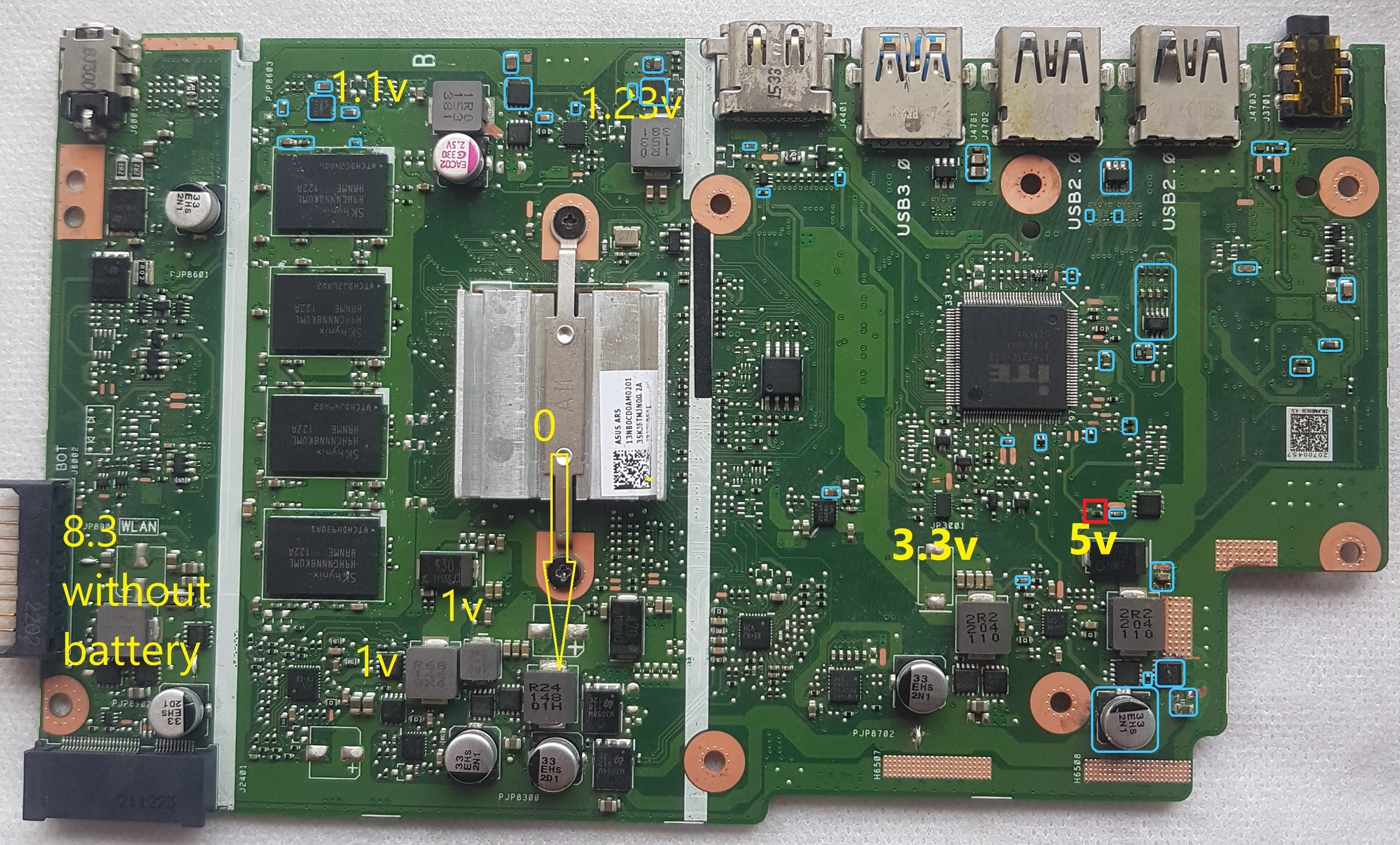

a resistor (red area)seems that corroded. i checked all part and it is ok.just resistor as picture. I don't know value of resistor

Amir написав:a resistor (red area)seems that corroded. I don't know value of resistor
[ Obrazek ]

Replace this resistor with a value 100kΩ.

Amir написав:i checked all part and it is ok.just resistor as picture.

Are you kidding
There are many other critically corroded components that MUST be replaced regardless of whether they seems functional or not:

As for the marked chips and transistors it's need to remove them from the board and inspect the board and the components itself underneath.
