#1 [ZAHTEVA ZA DATOTEKO BIOS] need eeprom dump AOC 519SW (tft15w60ps)

Napisal/-a Amir • 22 Februar 2023, 07:49
hi to all
need eeprom ( flash dump )AOC 519SW (tft15w60ps)

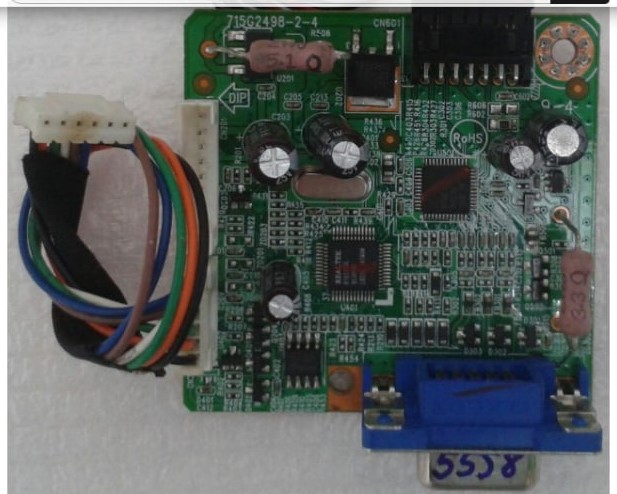

main part no: 715g2498-2-4
flash ic part no :24c16
Slika
tnx

Re: [ZAHTEVA ZA DATOTEKO BIOS] need eeprom dump AOC 519SW (tft15w60ps)

Napisal/-a Google Adsense [BOT] • 22 Februar 2023, 07:49

#2 [ZAHTEVA ZA DATOTEKO BIOS] Re: need eeprom dump AOC 519SW (tft15w60ps)  [REŠENO] 

Napisal/-a Vogelek23 • 22 Februar 2023, 12:51

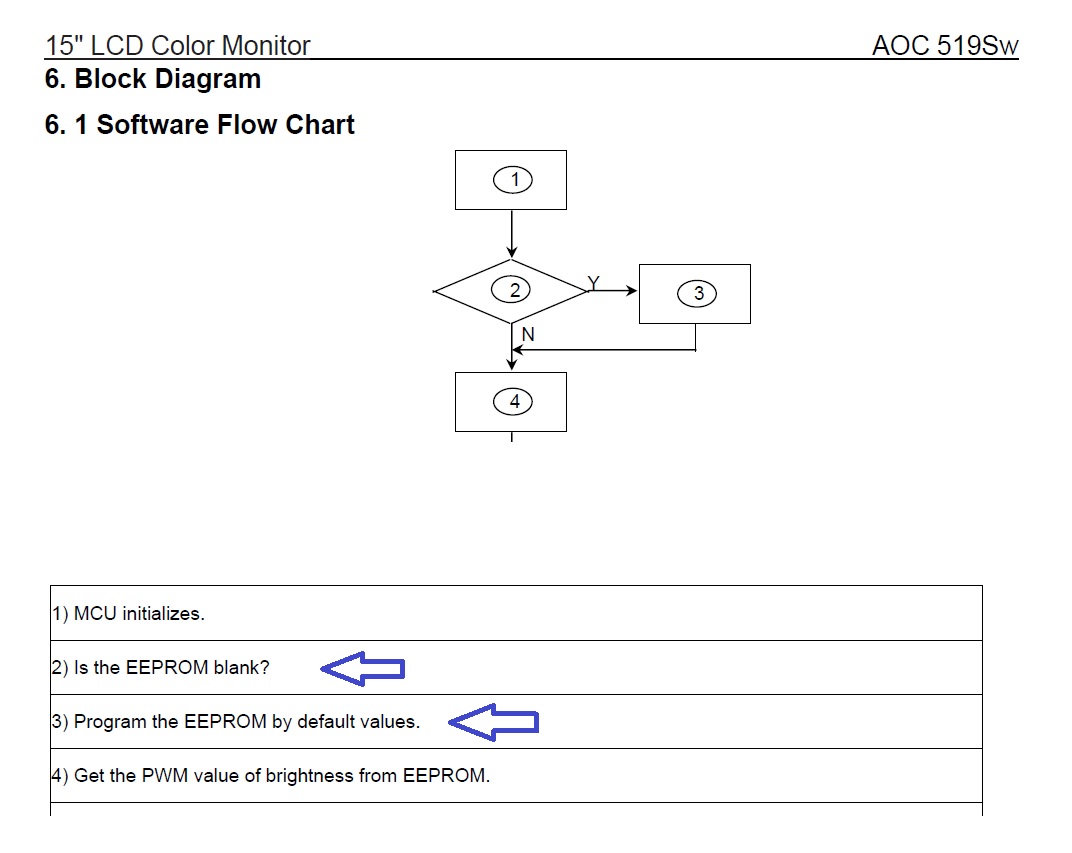

I don't think you really need this EEPROM dump. Basing on the flow chart below, it is automatically programmed with some default content by an RTD2120L MCU (as long as the EEPROM is blank, if not blank the MCU will not program it). Therefore, all you need is to erasing the EEPROM and soldering it back to the board so the EEPROM can be programmed with a default content at first power on. Allow MCU some time (usually up to 1 minute) to complete this process.
Slika

If the MCU will not program the blank EEPROM on startup, it means almost for sure that the MCU is faulty.

#3 [ZAHTEVA ZA DATOTEKO BIOS] Re: need eeprom dump AOC 519SW (tft15w60ps)

Napisal/-a Amir • 22 Februar 2023, 17:49
tnx Vogelek23
i erased eeprom.after soldring back and waiting for minute, no change.i read eeprom again , no program on eeprom. you are right and mcu is faulty
the keys not working no backlight just led power is blue.
tnx Vogelek23 for your attention
