#1 HP ProBook 4540s - brak dźwięku  [SOLVED]

by luielektr • 30 May 2025, 11:55
Witam.

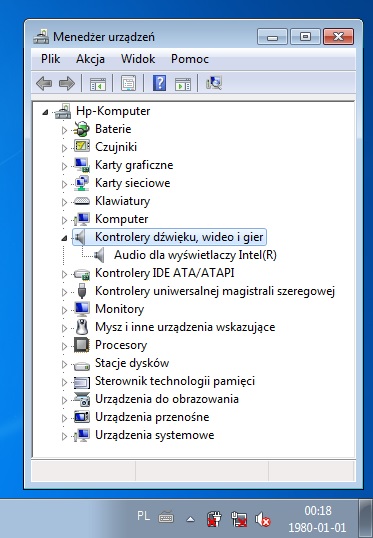

Płyta główna Rocky_Intel_MB 11243-1 48.4SI01.011, brak dźwięku tj. nie wykrywa kodeka audio (IDT92HD87B).
Co zrobiłem do tej pory:
- instalacja nowego systemu wraz ze sterownikami,
- przeprogramowanie BIOS'u,
- wymiana kodeka,
- wymiana PCH.

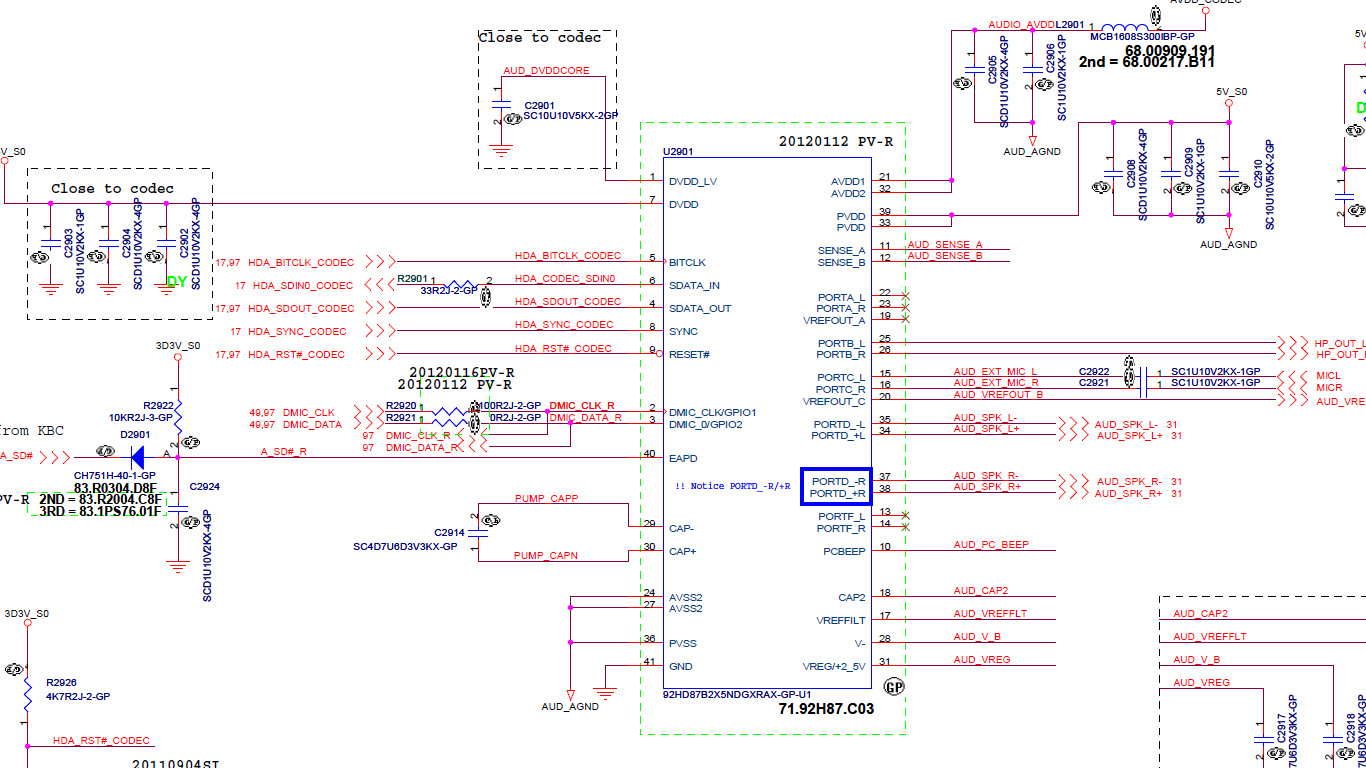

Napięcia z u2901 (IDT92HD87B):
01 - 1,8V (AUD_DVDDCORE DVDD_LV),
07 - 3,3V (3D3V_S0 DVDD),
09 - 3,3V (HDA_RST#_CODEC RESET#),
21/32 - 4,7V (AVDD_CODEC AVDD1_2),
31 - 2,7V (AUD_VREG/VREG +2_5V),
33/39 - 5,0V (5V_S0 PVDD),
40 - 0V (A_SD#_R EAPD).
Proszę o jakieś sugestie co jeszcze sprawdzić.
Pozdrawiam

Sprzęt naprawiony. Uszkodzony był U1704.
