Re: Dell 5450 ZAM70 LA-A901P Brak reakcji
by Google Adsense [BOT] • 24 January 2024, 20:45
Skoro na razie brak wykrytych zwarć na płycie to proponuję zaprogramować bios (tam są dwie kości i trzeba programować obie za każdym razem) sprawdzonym wsadem np. z tego wątku: dell-latitude-e5450-zam70-la-a901p-rev-1-0-t41980.html?hilit=LA%20A901P. Ta płyta bodajże musi posiadać pamięć ram nisko napięciową (z końcówką L) więc podmienić na sprawdzoną sprawną niskonapięciową. Płyta po wgraniu biosu uruchomi się (włączy i wyłączy) co najmniej ze trzy razy także trzeba czekać dłużej przy pierwszym uruchomieniu. Jak masz sprawną i zweryfikowaną matryce i jej taśmę to możesz także odpiąć całkowicie matrycę od płyty i zobaczyć czy wstaje z obrazem na HDMI lub VGA. Wentylatory muszą się kręcić i dioda przycisku power powinna być podświetlona i gasnąć przy restarcie samoczynnym płyty.
If you are satisfied with my help, look here:
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
If you are satisfied with my help, look here:
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point

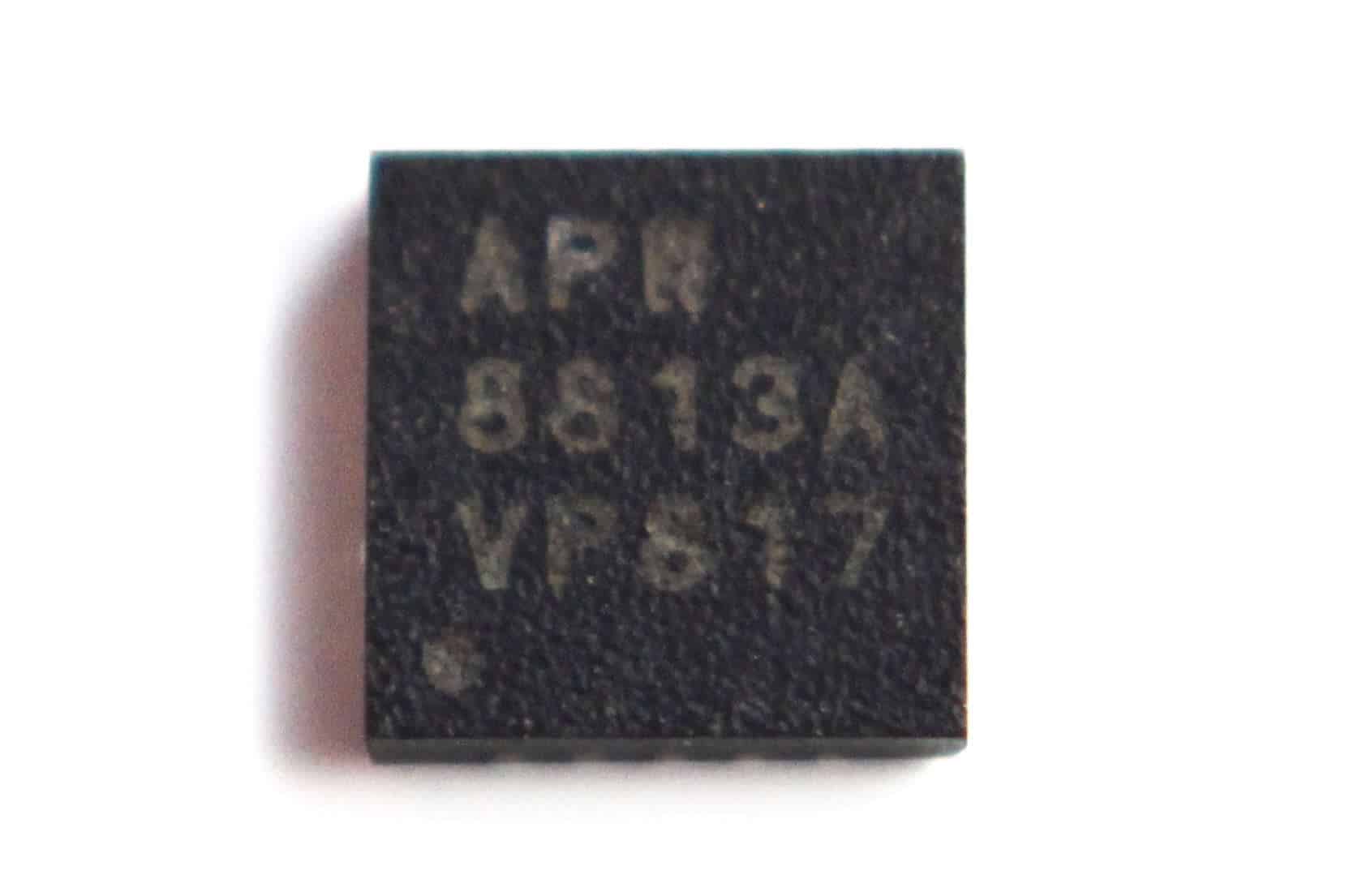

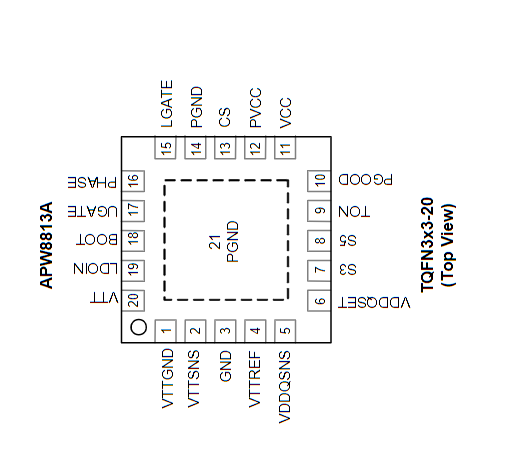

1 0v
2 0v
3 3,3v
4 0v
5 0v
6 0v
7 3,3
9 2,8v
13 0v
15 0v
Pin 11 power on(press) 0v
Pin 11 power off 2,85v
Czy dobrze rozumiem że nie ma napięcia +3.3V_ALW_PCH? Zmierzyłem skąd powinno wychodzić i schemat wskazał na UZ8, jest też zworka PJP20, gdy zmierzyłem oporność wyniosła 2.7om, sprawdziłem też zasilanie tego układu, 3,3v dochodzi, natomiast z VOUT2(8,9) nie wychodzi napięcie +3.3V_ALW_PCH.
2 0v
3 3,3v
4 0v
5 0v
6 0v
7 3,3
9 2,8v
13 0v
15 0v
Pin 11 power on(press) 0v
Pin 11 power off 2,85v
Czy dobrze rozumiem że nie ma napięcia +3.3V_ALW_PCH? Zmierzyłem skąd powinno wychodzić i schemat wskazał na UZ8, jest też zworka PJP20, gdy zmierzyłem oporność wyniosła 2.7om, sprawdziłem też zasilanie tego układu, 3,3v dochodzi, natomiast z VOUT2(8,9) nie wychodzi napięcie +3.3V_ALW_PCH.
Try to locate where the short is.
Do the test described here on PJP202, low resistance side (explained at the end of lesson 3):
post5699.html#p5699
Check if it heats the PCH contained in the APU. Most likely the PCH is faulty.
Measure the voltages on pin 5 of UZ8.
Do the test described here on PJP202, low resistance side (explained at the end of lesson 3):
post5699.html#p5699
Check if it heats the PCH contained in the APU. Most likely the PCH is faulty.
Measure the voltages on pin 5 of UZ8.
If you are satisfied with my help, look here:
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
If you are satisfied with my help, look here:
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
If you are satisfied with my help, look here:
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
Start by setting 1V current to 0A then gradually increase the current and check if any components heat up.
If nothing heats up, increase the voltage, maximum to 3V, reset the current and start increasing it again and always check what is heating up.
Provide the voltage and current reached.
Use cables of at least 1mm2.
If nothing heats up, increase the voltage, maximum to 3V, reset the current and start increasing it again and always check what is heating up.
Provide the voltage and current reached.
Use cables of at least 1mm2.
If you are satisfied with my help, look here:
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
integracja-funkcji-pomogl-z-zamykaniem-tematu-i-oznaczaniem-go-jako-rozwiazany-t11083.html
Helped to point
Hej, sorki za długą przerwę ale miałem operację i nie miałem jak próbować naprawy. Przechodząc do sedna, niestety nie mogę obecnie korzystać z hot aira i musiałem spróbować przylutować kabelek do zworki zwykłą lutownicą niestety przylutowałem na całą zworkę a nie na jej część, mimo to postanowiłem sprawdzić z zasilaczem, a więc po podniesieniu napięcia do około 2v i poborze prądu około 1A zaczął się nagrzewać procesor.
