#1 Asus FX504G Prośba o identyfikację elementu


by TripleH 8 November 2019, 16:02
Płyta główna: DABKLGMB8D0

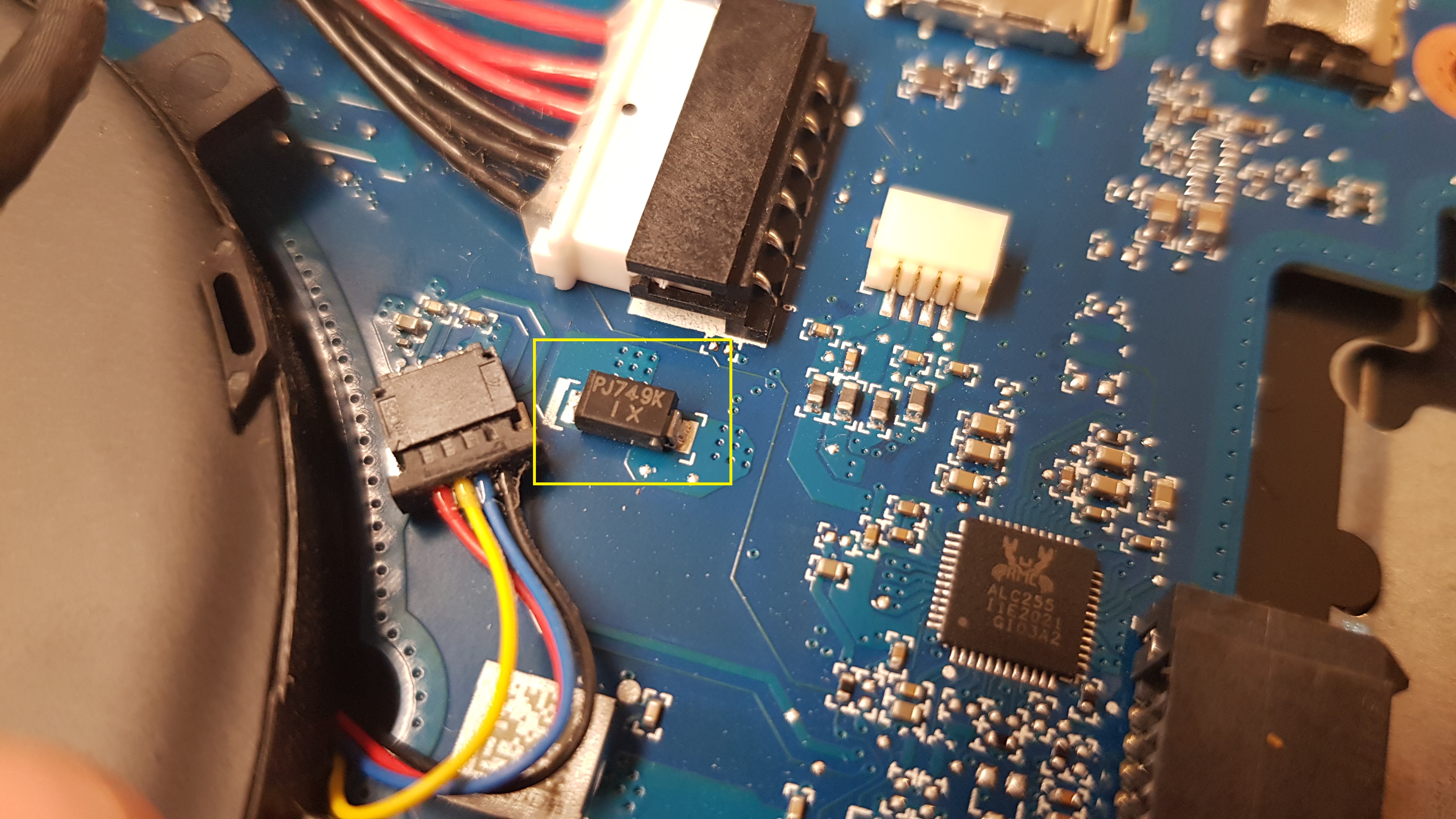

Witam. Mam prośbę o identyfikację elementu na zdjęciu. Wygląda na diodę zabezpieczającą na wejściu, ale po oznaczeniach nic nie mogę znaleźć.


Re: Asus FX504G Prośba o identyfikację elementu


by Google Adsense [BOT] 8 November 2019, 16:02

#2 Re: Asus FX504G Prośba o identyfikację elementu


by sebastiank 8 November 2019, 16:07
Ta dioda to SMAJ22A-13-F.

#3 Re: Asus FX504G Prośba o identyfikację elementu


by gofer 8 November 2019, 16:08

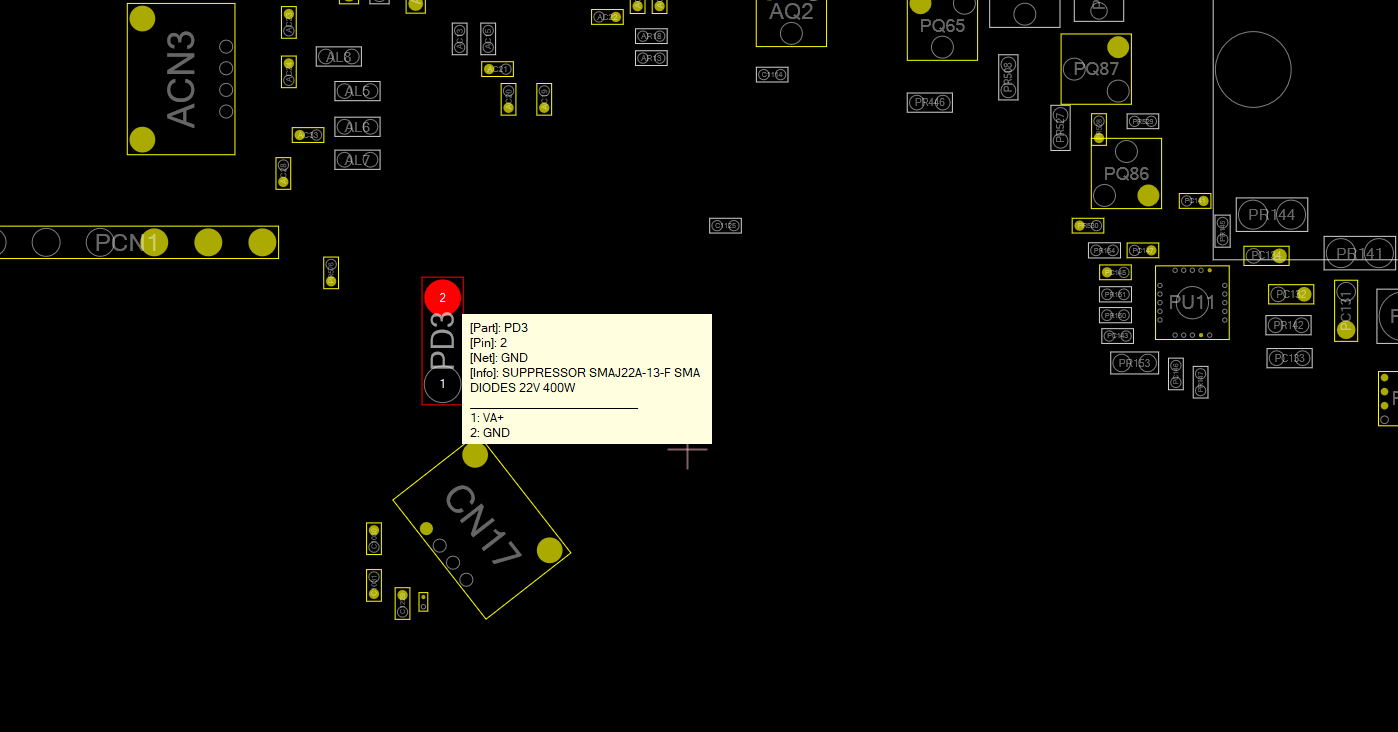

PD3-SMAJ22A-13-F

#4 Re: Asus FX504G Prośba o identyfikację elementu


by TripleH 8 November 2019, 16:14
Ale ekspres Panowie :) Dzięki. Jeśli to nie tajemnica, to na przyszłość mogę prosić o wskazówki jak rozkodować takie diody?

#6 Re: Asus FX504G Prośba o identyfikację elementu


by TripleH 8 November 2019, 16:18
No tak... Jak zawsze najbardziej oczywiste rozwiązanie jest najtrudniejsze :) Dioda zamówiona i "pomógł" dla Ciebie.
