#1 ACER NITRO AN515-54 COMPAL LA-H501P brak zasilania CPU +VCC_CORE

by Robi123 • 5 June 2025, 09:25

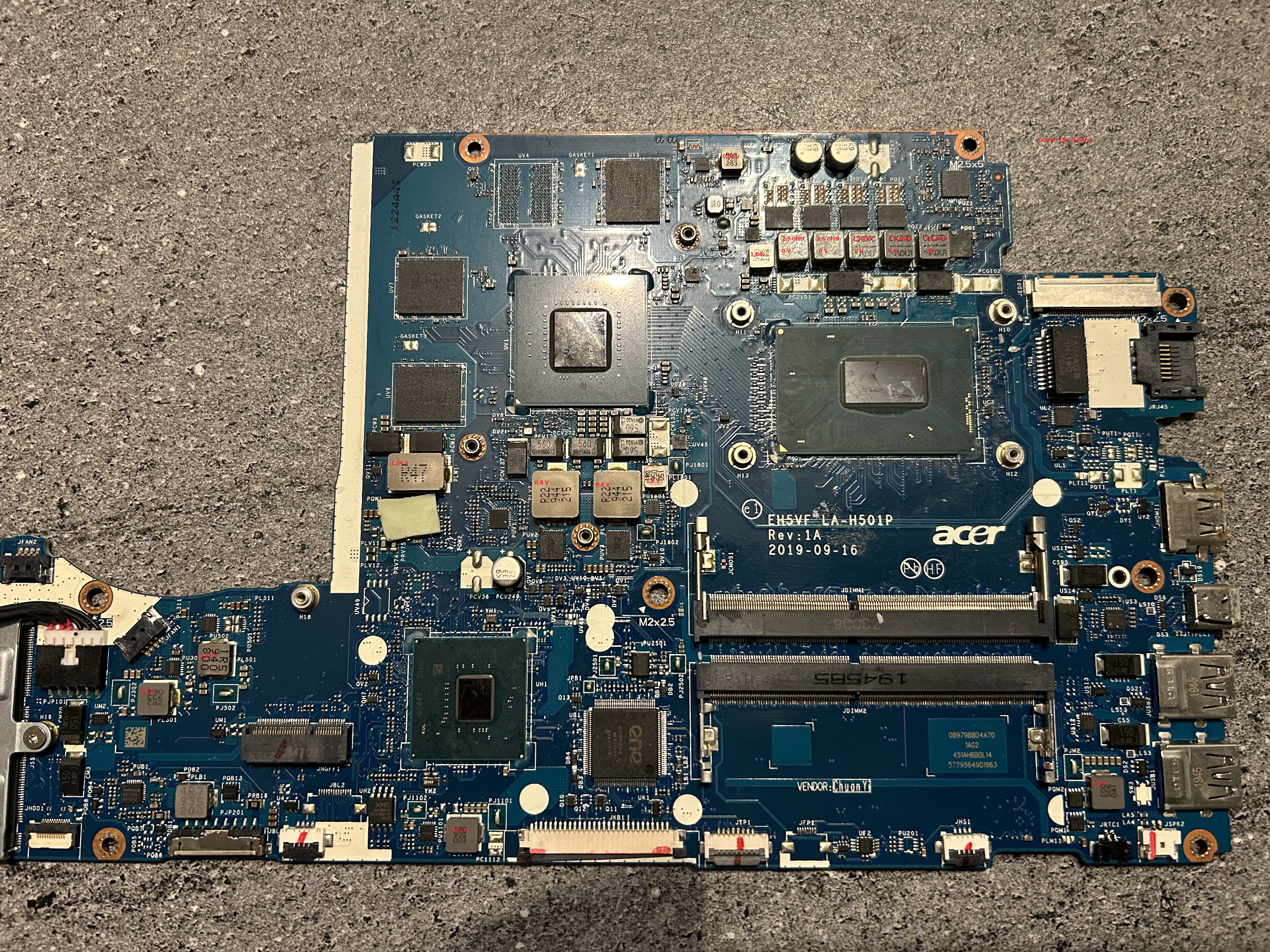

Dzień dobry , szanowni Koledzy na forum, jako ,że jest to mój pierwszy post jeśli chodzi o naprawę płyty bardzo proszę o wyrozumiałość :) .Płyta jak w tytule(jak widzę bardzo znana ) , startuje, podświetla się klawiatura i na tym koniec, brak obrazu, pobór prądu stoi na 0,422 A. Są wszystkie napięcia na cewkach oprócz zasilania CPU . tranzystory w gałęzi zasilania procesora raczej nie wykazują zwarcia.Rezystancja na cewkach PLZ1-4 2,5 ohm, PLG1 5,6 ohm . Załączam, foto z pomiarów . Płyta nie grzebana jeszcze, będę wdzięczny za podpowiedź co ewentualnie sprawdzić ... lub wyrok na CPU :)


Re: ACER NITRO AN515-54 COMPAL LA-H501P brak zasilania CPU +VCC_CORE

by Google Adsense [BOT] • 5 June 2025, 09:25

#3 Re: ACER NITRO AN515-54 COMPAL LA-H501P brak zasilania CPU +VCC_CORE

by Robi123 • 9 June 2025, 21:22
PUZ2 - PUZ5
1- 5,07 V
2- 2,01 V
3 - 4,9 V
4 - 5,13 V
5 - 0 V
8 - 0,003 V

#5 Re: ACER NITRO AN515-54 COMPAL LA-H501P brak zasilania CPU +VCC_CORE

by Robi123 • 16 June 2025, 08:29
na pinie 2 jest jakiś sygnał , lecz na pinie 5 oraz 8 nie ma nic
